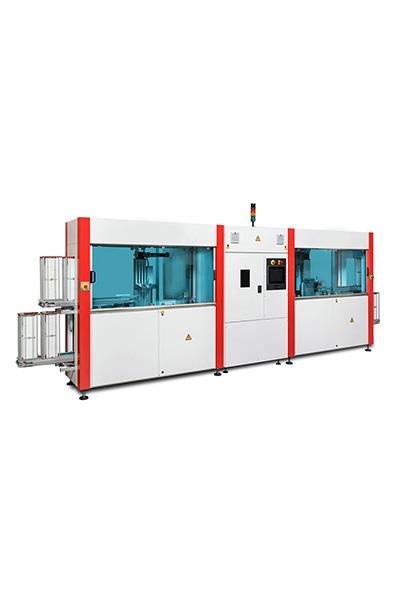

LASER MACHINE FOR CSI-SOLAR CELL PROCESSING
We have next generation laser processing system for cSi solar cells.
Our system is a state of the art laser system for cSi solar cell processing. It achieves a throughput of up to 7.500 wafers/ hour and is used in 24/ 7 high-volume production. System is available for various applicatons such as Laser Doped Selective Emitter (LDSE), Passivated Emitter Rear Contact cells (PERC) and laser direct cleaving- cell cutting (LDC) .
The system can be configured as a stand- alone system with loading and unloading automation or as an integrated PERC processing module into existing printing lines.
FEATURES
- Cost effective design
- Simple and easy to maintain design
- Dedicated solution for cSi solar cell processing
- Ultra high speed Galvo Scanner
- Automatic calibration routines
- InnoLas μVIsion
- Windows 10 IoT
- Touch display
- Fully automated stand-alone system
- Fully integrated PERC-module in printer line
Technical Data
|
Accuracy
|
< +/-25 μm (1 sigma)
|
|
Substrate
Dimensions
Thickness
Material
|
up to 166 x 166 mm
0.1mm – 0.15mm
mono or poly crystalline silicon square/ pseudo square
|
|
Dimensions
|
Width: 6449mm; Depth: 2145mm;
Height: 2100mm; Weight: 2800kg
|
|
Throughput
|
Up to 7500 wafer per hour
|
Options
- Integrated AOI with closed loop function
- Standalone buffer unit for inline solutions
